Automatic Helilink
The pilot can engage the helilink independently on the deployment box, analogous to the procedure with the existing (mechanical) helilink. With the automatic RCH-23 Helilik, the pilot can open and disengage the link independently, provided that the link is completely released. The open position is indicated to the pilot by means of a red LED cluster on the link.
Advantages

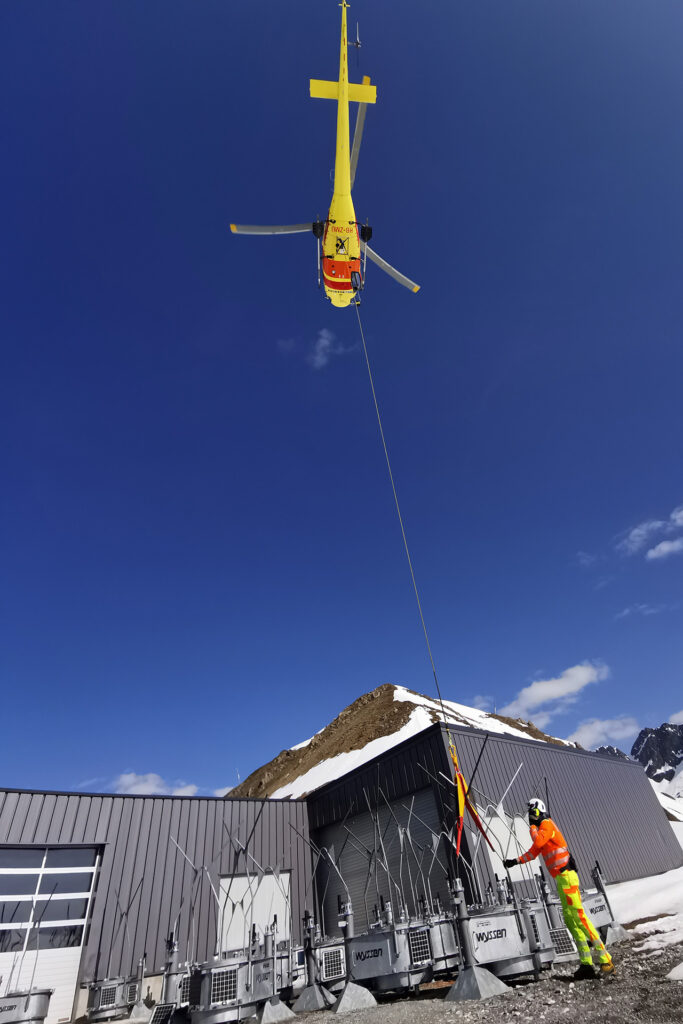

- Deployment boxes can be mounted on the tower and retrieved using the same handle.

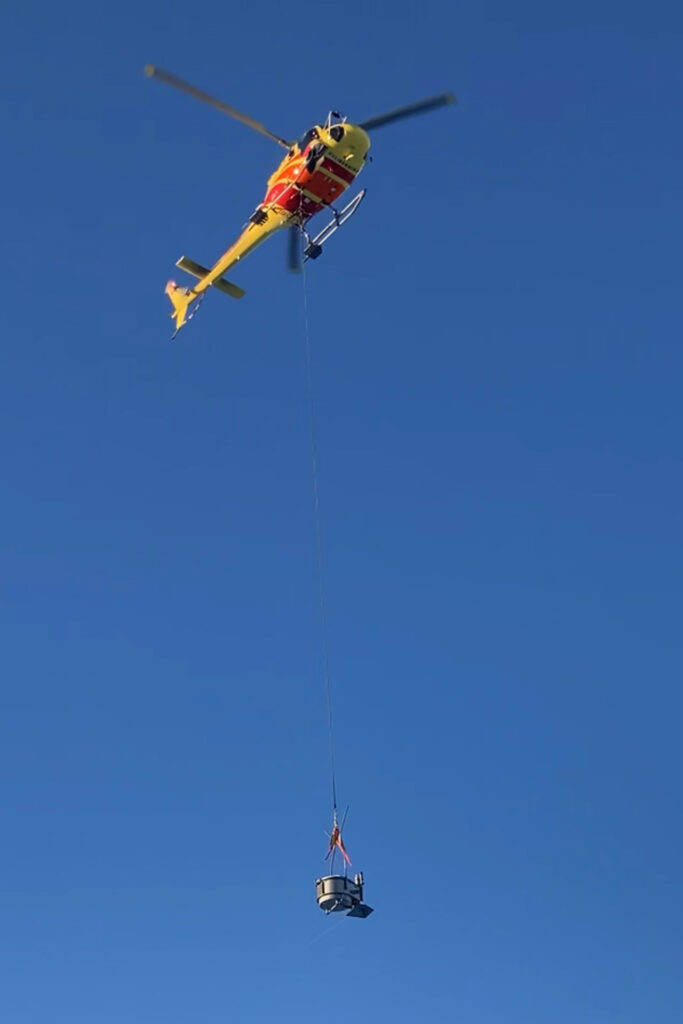

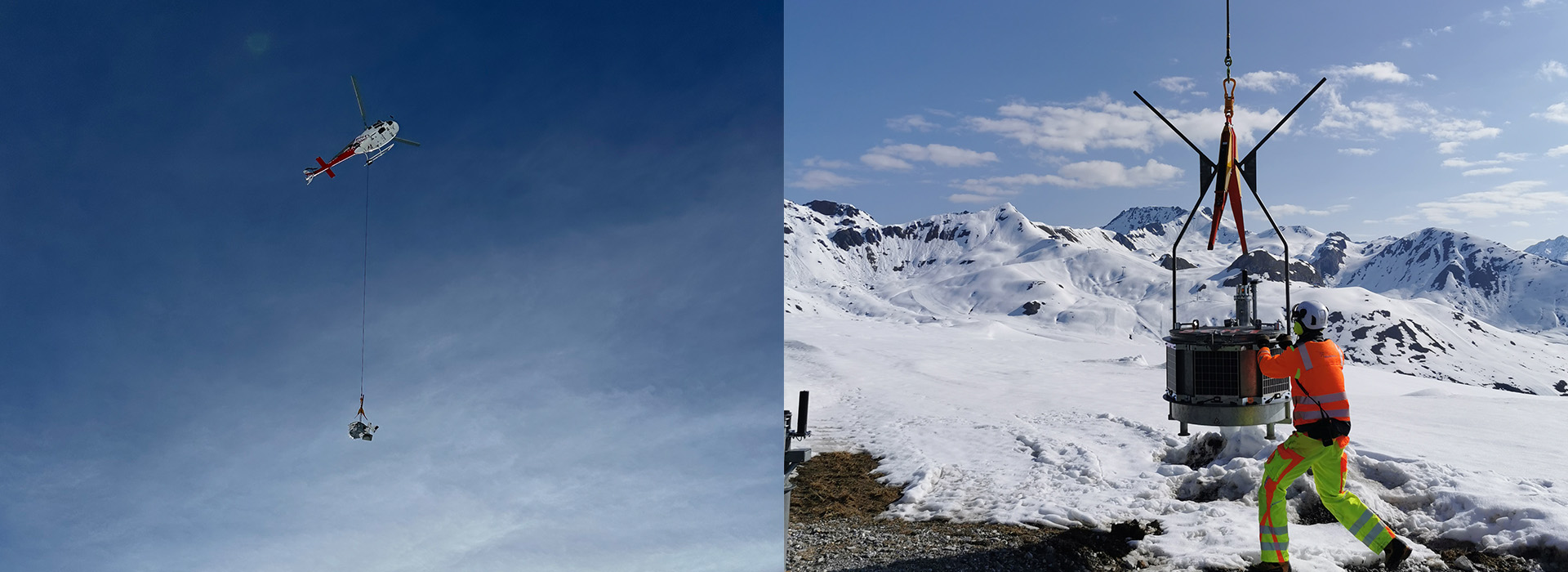

- Safe transport of the deployment boxes by helicopter thanks to perfectly matched components
- easy repositioning of incorrectly placed deployment boxes
- No persons in the danger zone around the deployment box
- No current-carrying longline
- Conventional longline can be used in various lengths

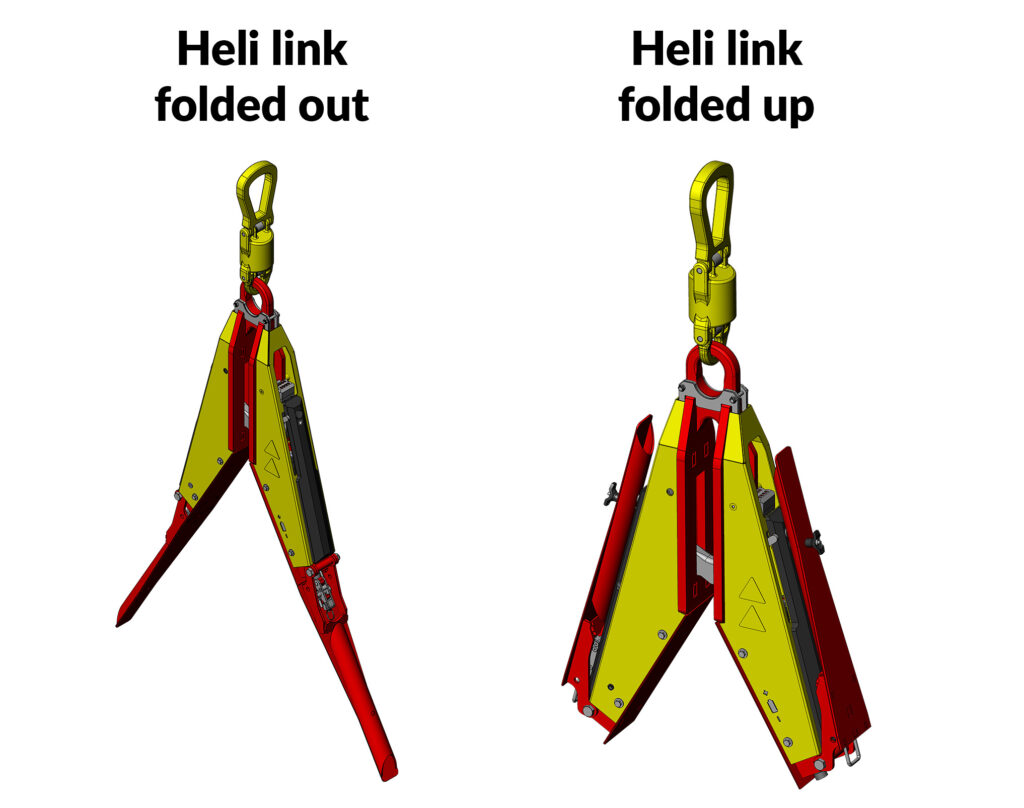

- Foldable for easier transportation by helicopter
- Good stability in flight
Technical data
| Description | Wyssen Automatic Heliklink |
|---|---|
| Weight: | 5kg |
| Weight: | 33kg |
| Max. load | 680kg |
| Dimensions (l x b x h): | 347 mm x 195 mm x 72 mm |
| Radio range | 120 mm |
| Battery receiver housing: | 18V DC (“Standard battery” sufficient for 600 rotations of 4 minutes each, at 22°C) |
| Radio transmitter battery: | 4.5V (3x AAA battery) |
| Temperature range: | -20°C - + 55°C |
| Technical approval: | The product has been approved by the FOCA (Federal Office of Civil Aviation). |
