Cable Winch W-200
The Cable winch to meet the most extreme demands
Brake systems
Holding brake:
- Shoe brake mounted directly in the drum
Driving brake optional:
- Air brake
- Eddy current brake
- Dead man's brake (hydro spring-loaded)
Power transmission
- Mechanical 8-speed gearbox plus 4 reverse speeds
- Hydraulic gearbox
Motors
- Various diesel engine
- Electric motor
Set up and function

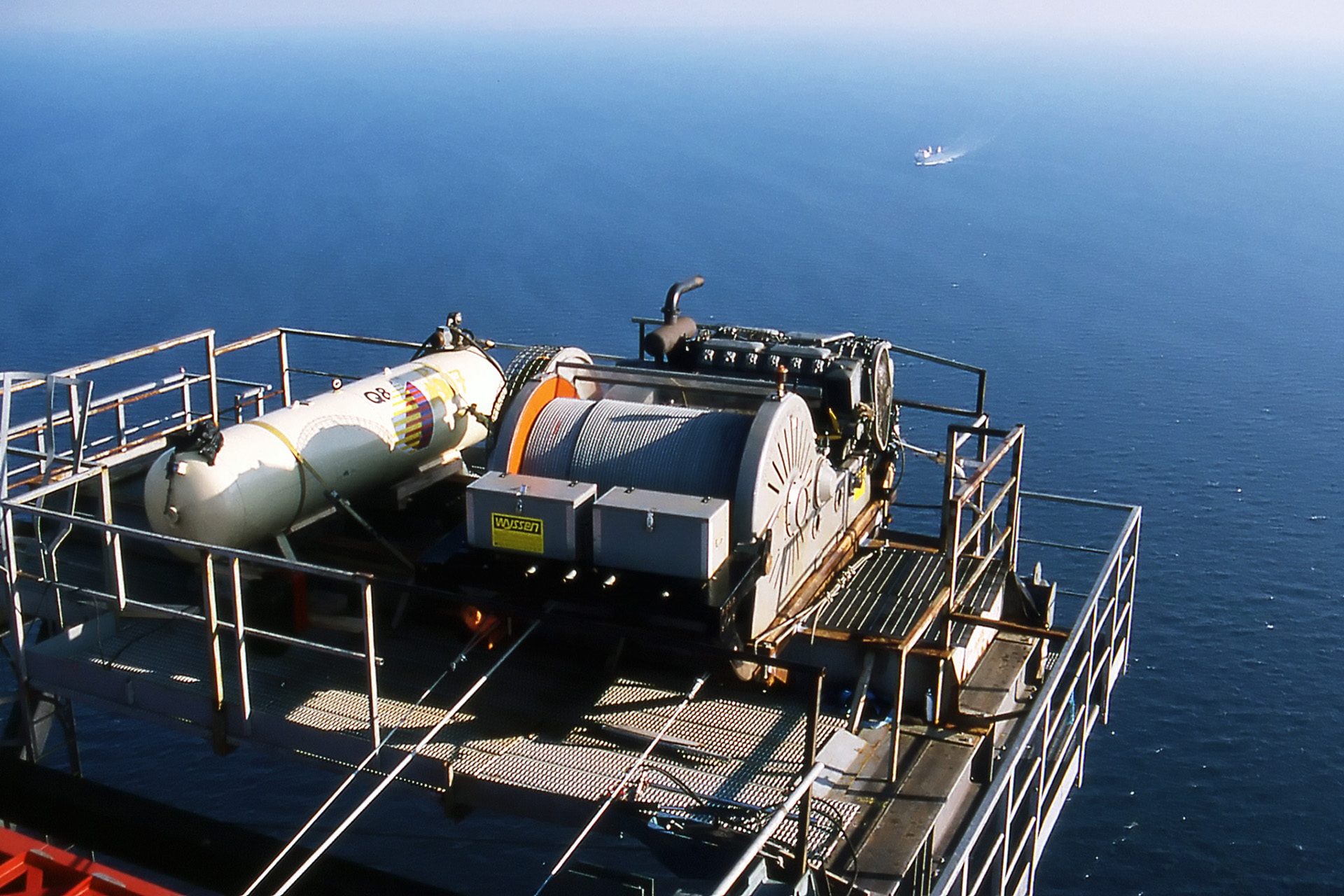

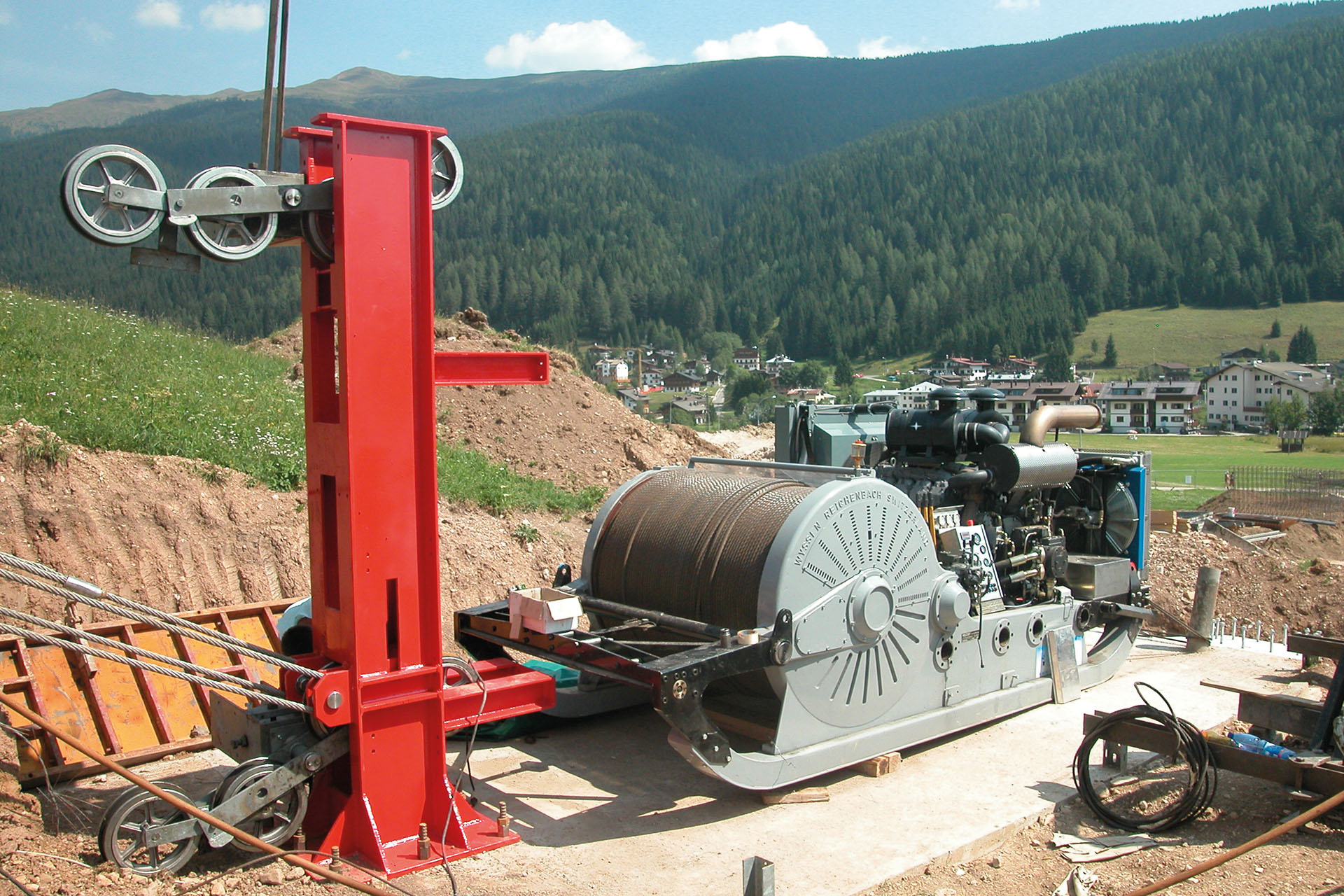

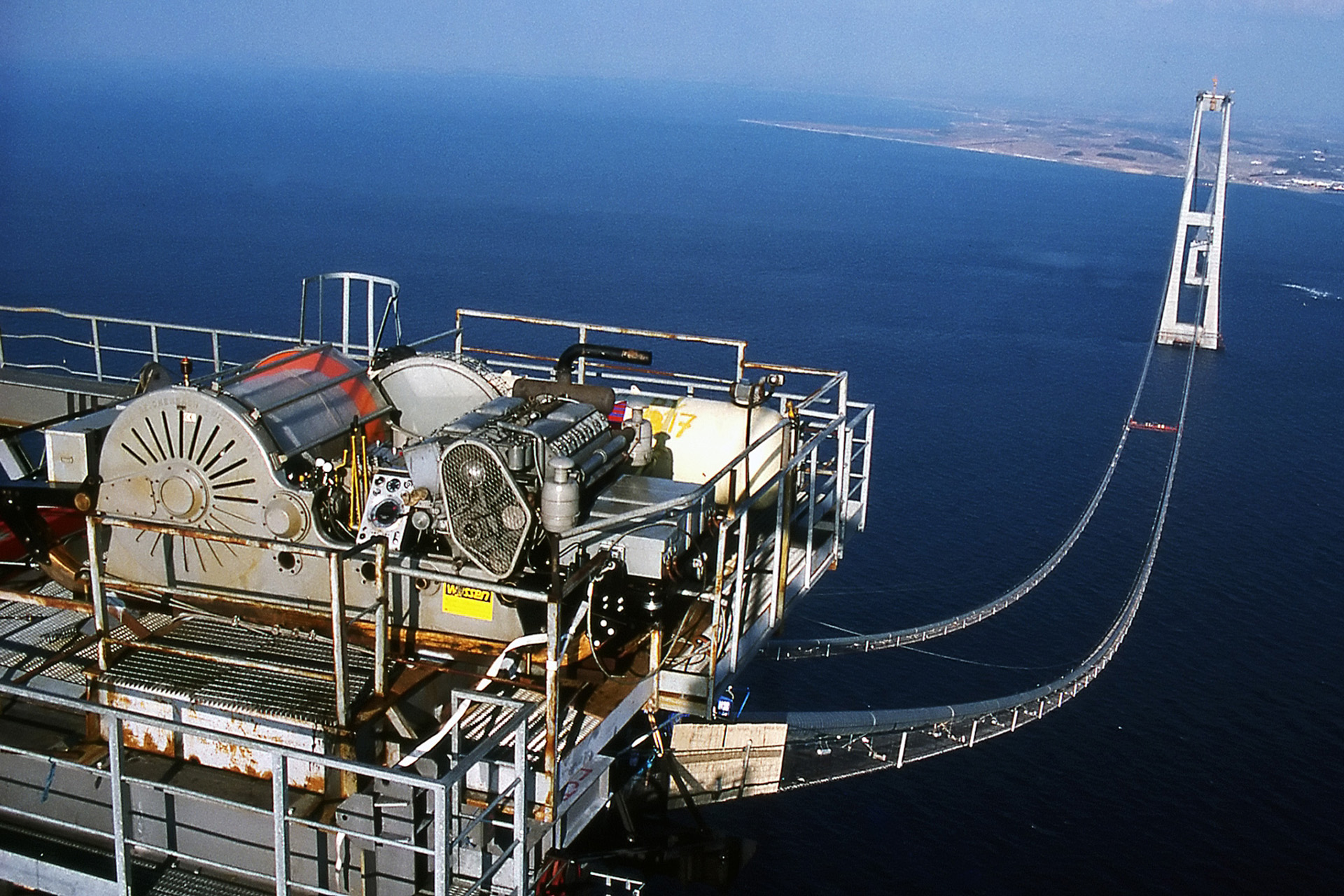

The W-200 is the biggest and strongest cable winch in our range. It is ideally suitable for very long cableways with very high load capacities . The cable winch is available with different diesel and electrical motors. The cable winch has a hydraulically controlled safety brake in the drum, which closes with a spring action with approx. 15 t braking force. The high-performance air eddy current brake has a braking performance of 400 to 2’000 HP, which is continuously adjustable during operation. The large gearwheel and the external bearing of the vane are lubricated by means of automatic central lubrication with an indicator light. The very big cable drum with a diameter of 966 mm reduces wear when winding long mainlines with large diameters. Like all Wyssen cable winches, the W-200 has a large-dimensioned fine-acting two-shoe brake in the drum, which has a braking area of 1.6m² in all. The W-200 cable winch is predominantly used with the MSK 2 and MSK 3 motorised skyline crane with high load capacities and long runways.
Options
The cable winch W-200 is available with the following options and accessories:
- wide sled runners
- electronic distance indicator
- Splash protector
- Protective cover
- Luggage rack
- Suspension gear
- Unimat drive (circulation with feed roller and swiveling deflection rollers)
- Circular drive wheel with Becorit lining or parabolic pulley
- Free-wheel for air brake
- Cable guide roller
- Overfill safety device
- Slack cable safety device
- Remote control
- Radio with automatic target
- Radio control with automatic guidance system
- Transport trailer
- Oil-cooled gearbox and filtration
Technical data
| Main Dimensions Cable Winch W-200 | Dimension | ||
|---|---|---|---|
| Length | 4’900 mm | ||
| Width | 2’300 mm | ||
| Height | 1’600 mm | ||
| Drum-ø | 966 mm | ||
| Drum width | 1’545 mm | ||
| Total weight | approx. 6'800 kg | ||
| Cable Drum Capacity | Cable Length | ||
| Cable-ø 16.0 mm | 3’640 m | ||
| Cable-ø 18.0 mm | 2’960 m | ||
| Cable-ø 20.0 mm | 2’390 m | ||
| Cable-ø 22.0 mm | 1’920 m | ||
| Cable-ø 25.0 mm | 1’730 m | ||
| Tractive Forces and Speeds W-200 | Drum Empty | Drum Half-Full | Drum Full |
|---|---|---|---|
| 1st forward gear | 0.90 m/s 13’500 kg | 1.05 m/s 11’500 kg | 1.20 m/s 10’200 kg |
| 2nd forward gear | 1.20 m/s 10’000 kg | 1.40 m/s 8’700 kg | 1.60 m/s 7’600 kg |
| 3rd forward gear | 1.70 m/s 7’100 kg | 1.95 m/s 6’100 kg | 2.25 m/s 5’350 kg |
| 4th forward gear | 2.25 m/s 5’350 kg | 2.60 m/s 4’600 kg | 3.00 m/s 4’000 kg |
| 5th forward gear | 2.80 m/s 4’250 kg | 3.30 m/s 3’650 kg | 3.75 m/s 3’200 kg |
| 6th forward gear | 3.75 m/s 3’200 kg | 4.35 m/s 2’800 kg | 4.95 m/s 2’400 kg |
| 7th forward gear | 5.30 m/s 2’250 kg | 6.20 m/s 1’950 kg | 7.05 m/s 1’700 kg |
| 8th forward gear | 7.05 m/s 1’700 kg | 8.20 m/s 1’450 kg | 9.35 m/s 1’300 kg |
| Reverse gear | Drum Empty | Drum Half-Full | Drum Full |
| Reverse gear 1 | 1.35 m/s 8’900 kg | 1.55 m/s 7’700 kg | 1.80 m/s 6’700 kg |
| Reverse gear 2 | 2.55 m/s 4’750 kg | 2.95 m/s 4’100 kg | 3.35 m/s 3’600 kg |
| Reverse gear 3 | 4.25 m/s 2’800 kg | 4.95 m/s 2’400 kg | 5.60 m/s 2’100 kg |
| Reverse gear 4 | 8.00 m/s 1’500 kg | 9.25 m/s 1’300 kg | 10.60 m/s 1’100 kg |
