Carriage Slackpuller
The motorised slackpuller is designed for long-distance cableways and mobile cableways.
Set up and function

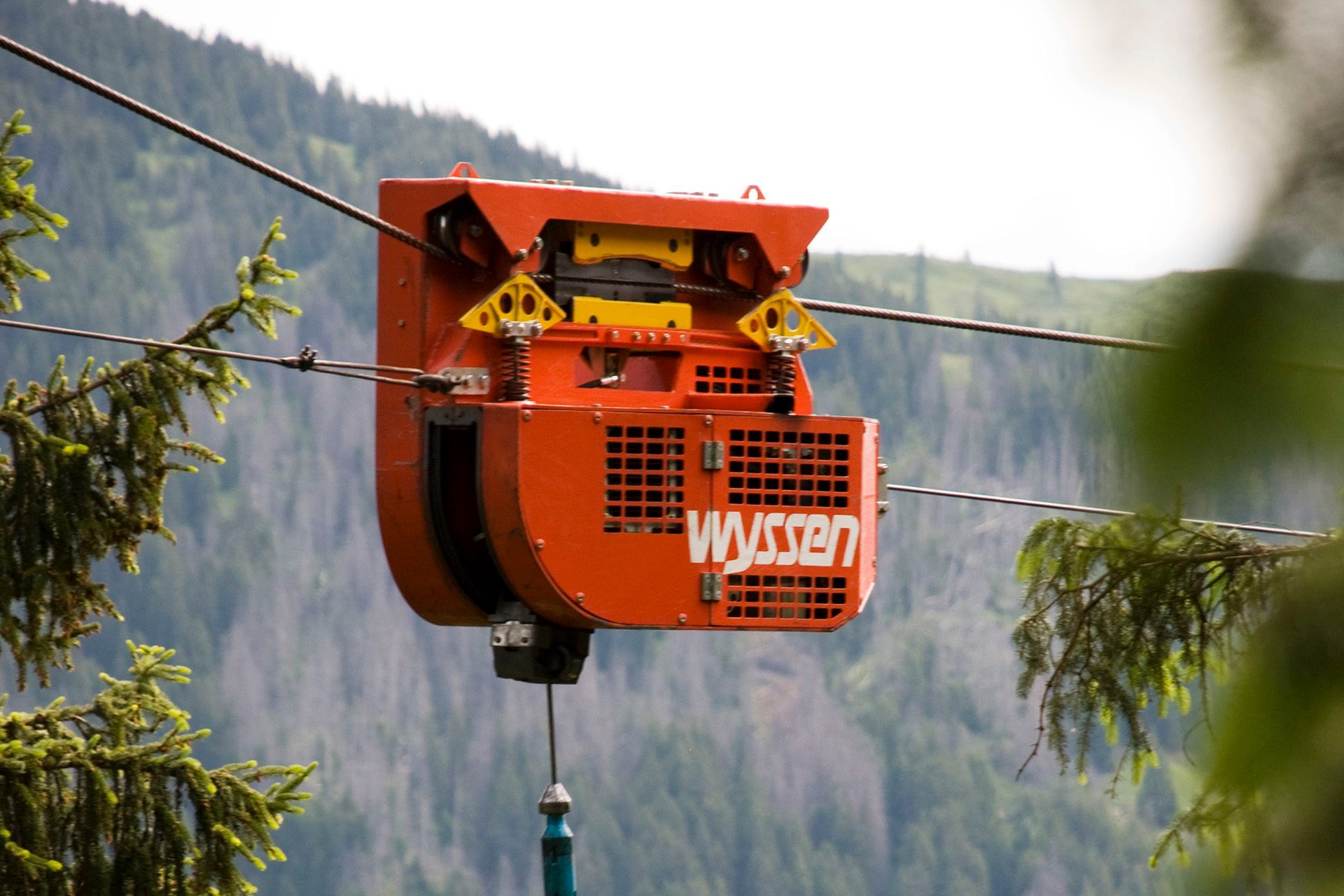

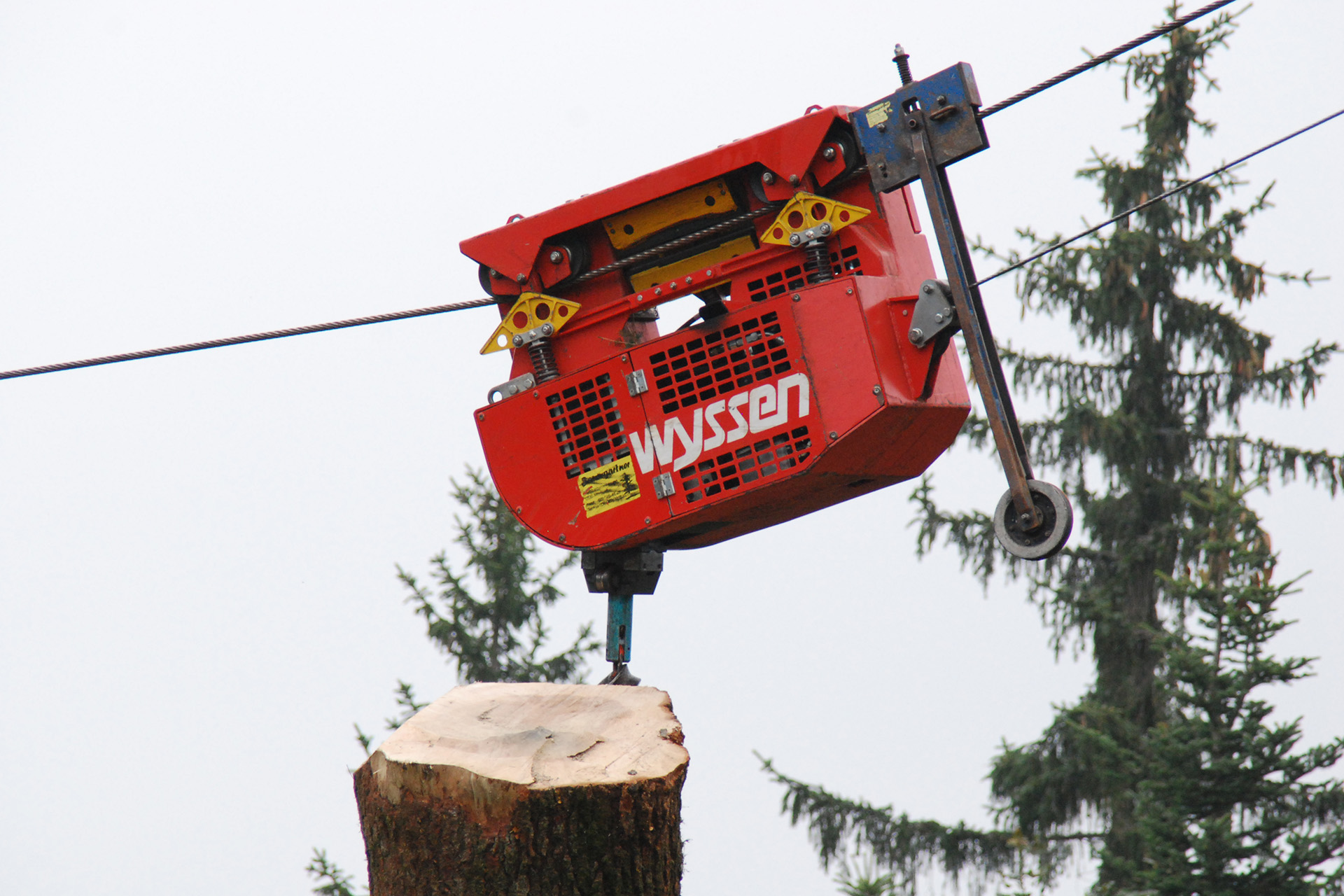

The latest development is the extremely compact, remote controlled Wyssen slack-pulling carriage. The chassis of the carriage is made of high-tensile steel that is four times stronger than conventional steel. Thanks to the remote control, the operator in the forest can stop and secure the carriage at the exactly right location. The spooling procedure starts automatically (needs no radio-controlled command). The mainline clamp allows the slackpuller to be released while the load is raised or lowered, permitting movement to a new location and re-clamping to the cable. This facilitates the sideways pulling of the load and protects the remaining timber growth from damage. As soon as the hook is drawn tight into the carriage, the skyline grip automatically releases. During travel of the unit, the hook is secured against rotation, preventing damage to the mainline. The slackpuller is also available with a pendulum (recommended for long-distance cableways). The pendulum can be retrofitted at any time. The carriage travels over the popular heavy-duty Wyssen support saddle. The mechanical mainline safety feature activates an emergency stop if the mainline is ruptured.
Carriage Slackpuller
Advantages
compared to carriages with integrated lifting winch:
- Lifting height is not limited since there is no drum
- Higher lifting force due to direct hoisting from the mobile cable crane/cable winch
- Faster lifting speed due to direct hoisting from the mobile cable crane/cable winch
- Up to 50% lower weight
- Environmentally friendly 10 HP diesel motor which is economical in consumption
- No cutting of the mainline in the hoist-drum is possible
- Shortening the mainline does not alter the lifting height
- If the mainline ruptures, the clamping mechanism activates immediately
- Thanks to the clamping device the carriage does not shift position when pulling a load
- No change in lifting force (whether the drum is full or empty)
- Diesel fuel tank goes for 3 days without refilling
- Hook is protected against rotation
- Angular to horizontal pulling is possible without any problem
- No switching on or off is necessary in the morning or evening (automatic standby)
- After clamping the slackpuller works fully automatically without any commands
Advantages
Compared to conventional spooling out carriages:
- Hook comes out on its own even for horizontal runways
- Clamping/opening by radio signal, spooling procedure starts automatically
- The pump is power-regulated and is always spooled at max. speed
- Mainline is always under tension up to the mobile cable crane/ cable winch, so that the cable is always wound cleanly
- Faster lifting of the load due to less slack in the cable

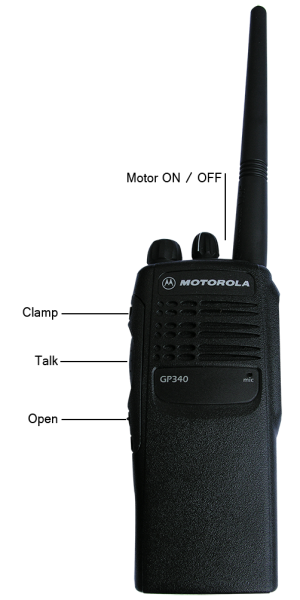

Operation via radio
Technical data
| Specifications carriage Slackpuller | Description |
|---|---|
| Length | 1’350 mm |
| Width | 660 mm |
| Height | 975 mm |
| Spooling force | approx. 350 kg |
| Diesel motor | Hatz approx. 7 kW / 10 hp |
| Skyline-ø | 16 – 36 mm |
| Mainline-ø | 9 – 13 mm |
| Unladen weight | approx. 650 kg |
| Load capacity | 3’000 kg |
Movies Carriage Slackpuller
Wyssen Control System FSI 2007
The Wyssen Control System FSI is integrated in the Wyssen Carriage Slackpuller. Unitatea de comandă este, de asemenea, instalată pe următoarele mașini: Căruciorul Universal, Funiculare Motorizate, Grupul motor W-30, Grupul motor W-40 și în Grupul Motor W-90.
Advantages
- operable with radio
- can be adapted for the existing radio remote control on the mobile cable crane
- automatically switches off when not in use
- clamping with a radio signal during the journey via set speed no longer possible
- Automatic emergency stop if the programmed speed limit is exceeded
- Display for setting the parameters
- All parameters can be individually adjusted (speed, clamping and delay times)
- Battery status display
- CAN-Bus interface
- Integrated 3D inclination sensor
- Resistant against moisture, vibration and impact due to completely enclosed electronics
- Plug is secured with screws
- Software updates with improvements and upgrading is possible at any time
