Used carriages
For sales and further information, please call: +41 (0) 33 676 76 76

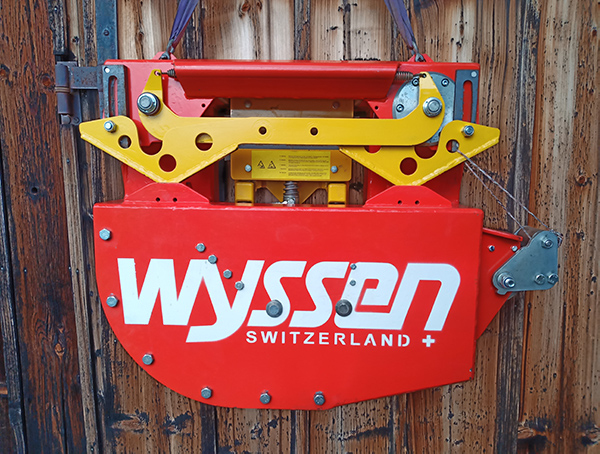

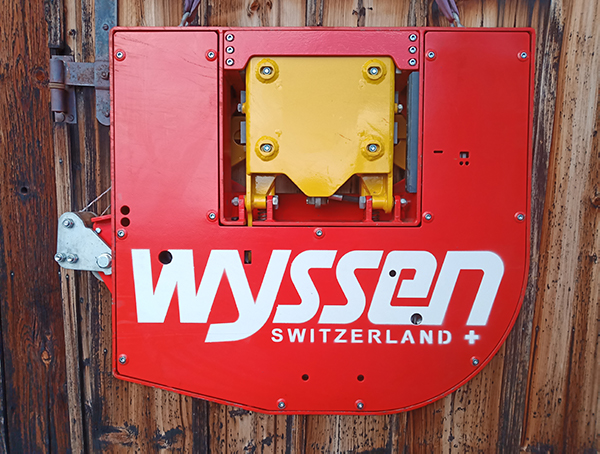

Used Carriage HY-2
Technical data
| Factory No. | 110.011 |
|---|---|
| Condition | very good, complete overhaul including re-painting |
| Load capacity | 3t |
Description
Radio control and radio receiver built into the carriageSkyline cable and mainline cable clamping via radio signal, when the load is lowered, the carriage can be moved in any direction after clamping of the mainline cable, with an electronic timer for fully automatic clamping on the skyline cable when stationary, programmable trigger time, the electronic timer remains active even if there is interference in the radio transmission (conventional clamping with time release), protected against jamming at full speed (programmable speed), automatic emergency braking in the event of overspeed (programmable speed), existing handheld radios of the type ICOM IC-F34GS and Motorola GP 340 VHF can be adapted as control units. Other radio devices on request. Programmable mainline cable break protection, failure protection, operating tools, 230 V charger with a carriage adapter, operating instructions / safety regulations, spare parts list, including choker spindle
Optionally available:
Motorola GP 340 (used) for speaking as well as programmed and adjusted to control the carriage, incl. desktop charger and leather case with 3-point belt
Used Carriage HY-4F
Technical data
| Factory No. | 131.057 |
|---|---|
| Condition | very good, overhauled |
| Load capacity | 4t |
Description
The used carriage is equipped with radio control, without mainline cable clamp
Skyline cable clamp ø (+/- 1 mm) as selected by the customer 18/20/22/24/26/28/30/35/34/36 mm
Skyline cable rollers ø as selected by the customer 20/24/28/32/36 mm
with an electronic timer for fully automatic clamping on the skyline cable when stationary, freely adjustable time release, with normal pendulum for locking the hook (without mainline cable clamping), cable safety break and fail-safe
Inclusive:
- Radio receiver (built into the carriage)
- Choker hook
- 2 pcs. 10ND-3/2D battery, item No. 131.1060
- 1 pc. charger, item No. 5821LG10-12Z/2.8-7AH
- 1 pc. operating manual
- 1 pc. spare parts list
- 1 pc. tool case for operating and maintaining the carriage

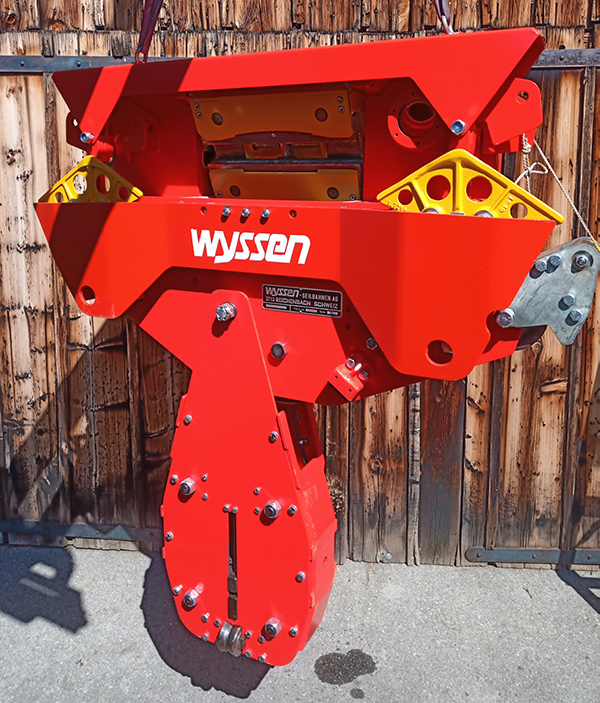

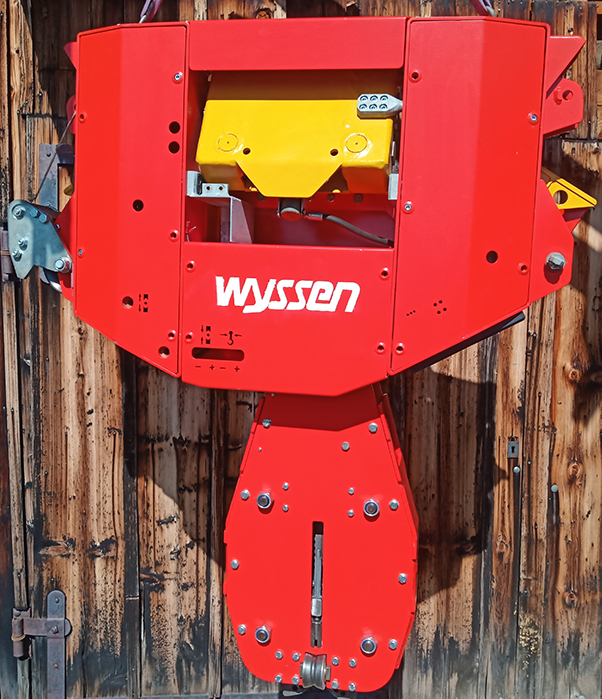

Used carriage HY-4FZ
Technical data
| Factory No. | 131.085 |
|---|---|
| Condition | very good, complete overhaul including re-painting |
| Load capacity | 4t |
Description
The used carriage is equipped with radio control and mainline cable clamp
Skyline cable clamps ø (+/- 1 mm) as selected by the customer 18/20/22/24/26/28/30/32/34/36 mm
Mainline cable clamps ø (+/- 1 mm) as selected by the customer 10/11/12/13/14 mm (requires a strengthened/compacted mainline cable or a mainline cable with a steel core)
skyline cable rollers ø as selected by the customer 20/24/28/32/36 mm with an electronic timer for fully automatic clamping on the skyline cable when stationary, freely adjustable time release, with mainline cable break protection, failure protection and mainline cable clamp pendulum for moving with a lowered load.
Inclusive:
- Radio receiver (built into the carriage)
- Choker hook
- 2 pcs. 10ND-3/2D battery, item No. 131.1060
- 1 pc. charger, item No. 5821LG10-12Z/2.8-7AH
- 1 pc. operating manual
- 1 pc. spare parts list
- 1 pc. tool case for operating and maintaining the carriage

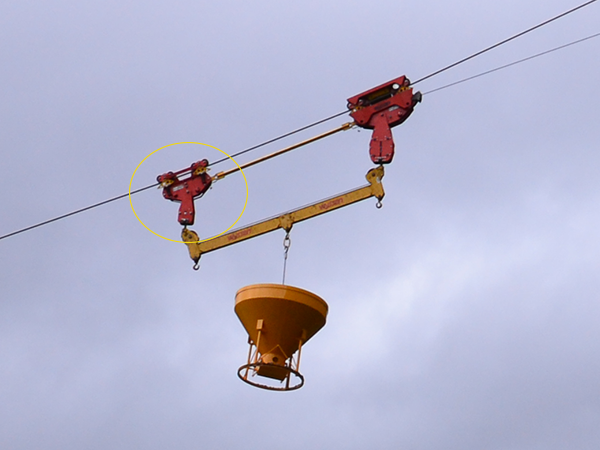

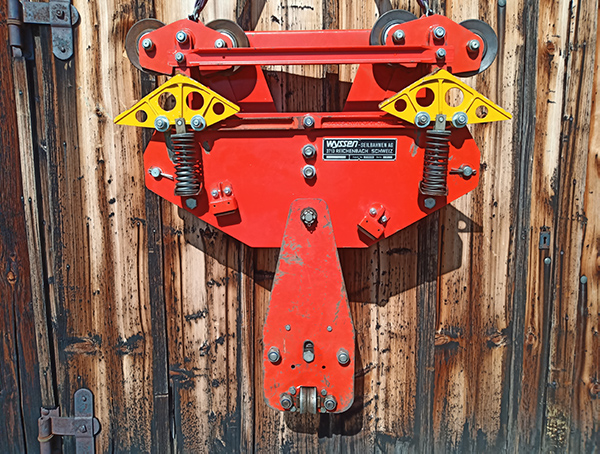

Used Trailing carriage HY-3N
Technical data
| Factory No. | 131.1500.006 |
|---|---|
| Condition | very good, complete overhaul including re-painting |
| Load capacity | 4t (together with carriage and transport bar 5t) |
| Notes | Skyline cable rollers ø .. mm (as selected by the customer ø 20/24/28/32/36) |
Description

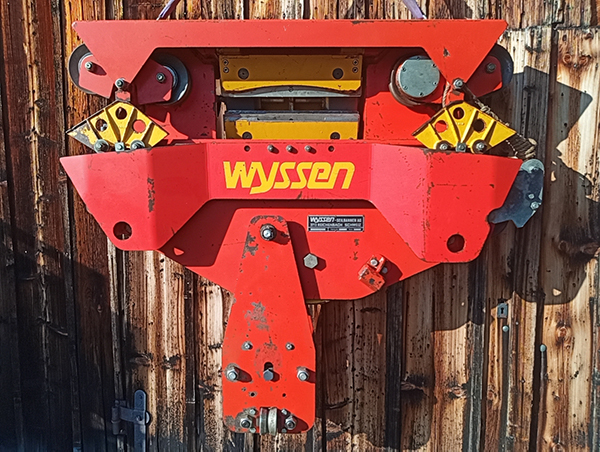

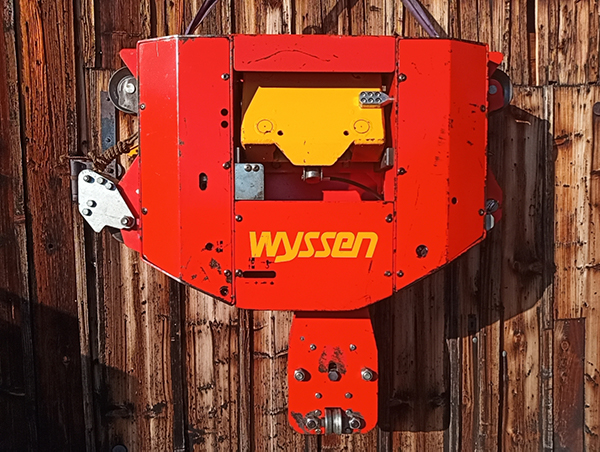

Used carriage HY-7F
Technical data
| Factory No. | 121.002 |
|---|---|
| Condition | very good, overhauled |
| Load capacity | 7t |
Description
Skyline cable rollers as selected by the customer ø 24 – 45 mm, skyline cable clamps (ø +/- 1 mm) (as selected by the customer ø 24 – 45 mm), with radio control or a timer for fully automatic clamping on the skyline cable when stationary, freely adjustable time release, mainline cable break protection, fail-safe, standard pendulum, tool box for operating and maintaining the carriage, operating instructions, spare parts list, without hoisting hook.
Used carriage HY-7N
Technical data
| Factory No. | 121.1500.0 |
|---|---|
| Condition | very good, overhauled |
| Load capacity | 7t (together with carriage and tranpsort bar until 10 t) |
| Notes | Skyline cable rollers ø .. mm (as selected by the customer ø 24-45 mm) |
Description

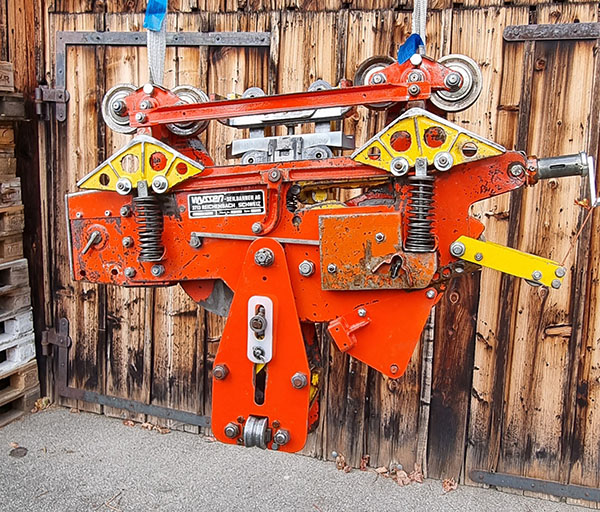

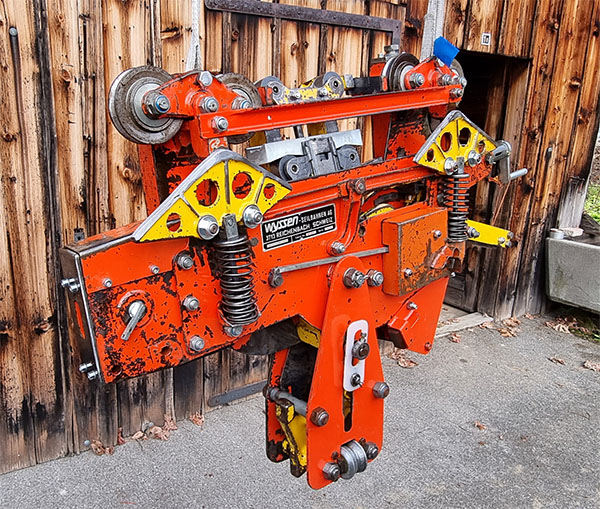

Used carriage 2.5T
Technical data
| Factory No. | 10.245 |
|---|---|
| Condition | very good, complete overhaul |
| Load capacity | 2.5t |
Description
The used carriage is equipped with the following features:
with mainline cable break protection
with failover protection
standard pendulum
with hoisting hook or choker hook
Weight 206 kg
with tool box for operating and maintaining the carriage,
operating instructions, spare parts list
Used carriage 5T
Technical data
| Factory No. | 15.063 |
|---|---|
| Condition | very good, complete overhaul including re-painting |
| Load capacity | 5t |
Description

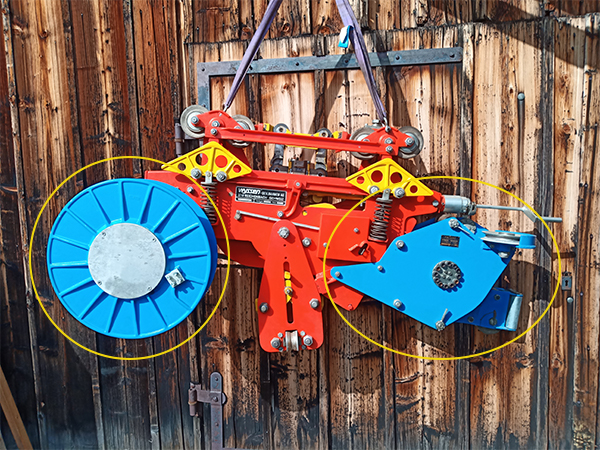

Used Unimat attachments for carriages 2.5T and 5T
Additional UNIMAT Equipment for Wyssen Cable Cranes, independent of the terrain
DUNIMAT is an additional system for standard automatic carriages and consists of devices (blue) that are attached to the left and right sides of the carriage. UNIMAT works with an endless mainline cable and enables transportation horizontally and on varying slopes.
Special benefits of UNIMAT:
- UNIMAT is easy to install and uninstall on all standard automatic carriages with a load capacity of 2.5 tons and can be driven with our standard motor sledges.
- When a load is lifted vertically, the pulling force on the circulating cable is only 1/3 of the load. The speed ratio between the circulating cable and the hoisting cable is constant (1:3) and does not change during lifting and lowering.
- The lifting wheel only has one cable layer and this prevents the cable from cutting in under load and from getting stuck when it is wound down without a load.
- The capacity of the hoisting cable storage drum normally allows for a load to be lifted up to 170 m and can be increased in specific cases.
- UNIMAT is a very powerful system and can be used for long distances and over supports.
- The lifting wheel with planetary gear is driven by the revolving cable looped around the drive wheel. The hoisting cable is wound onto/via the storage drum after being wrapped around the lifting wheel with a low input tension. The other end of the hoisting cable is attached to the load hook. The hoisting cable is not in the cable line.
- The control mechanism is a special design aimed at protecting the cable on the drive wheels.
