Wyssen Bucket Release System BRS-24

Cable-free and simple

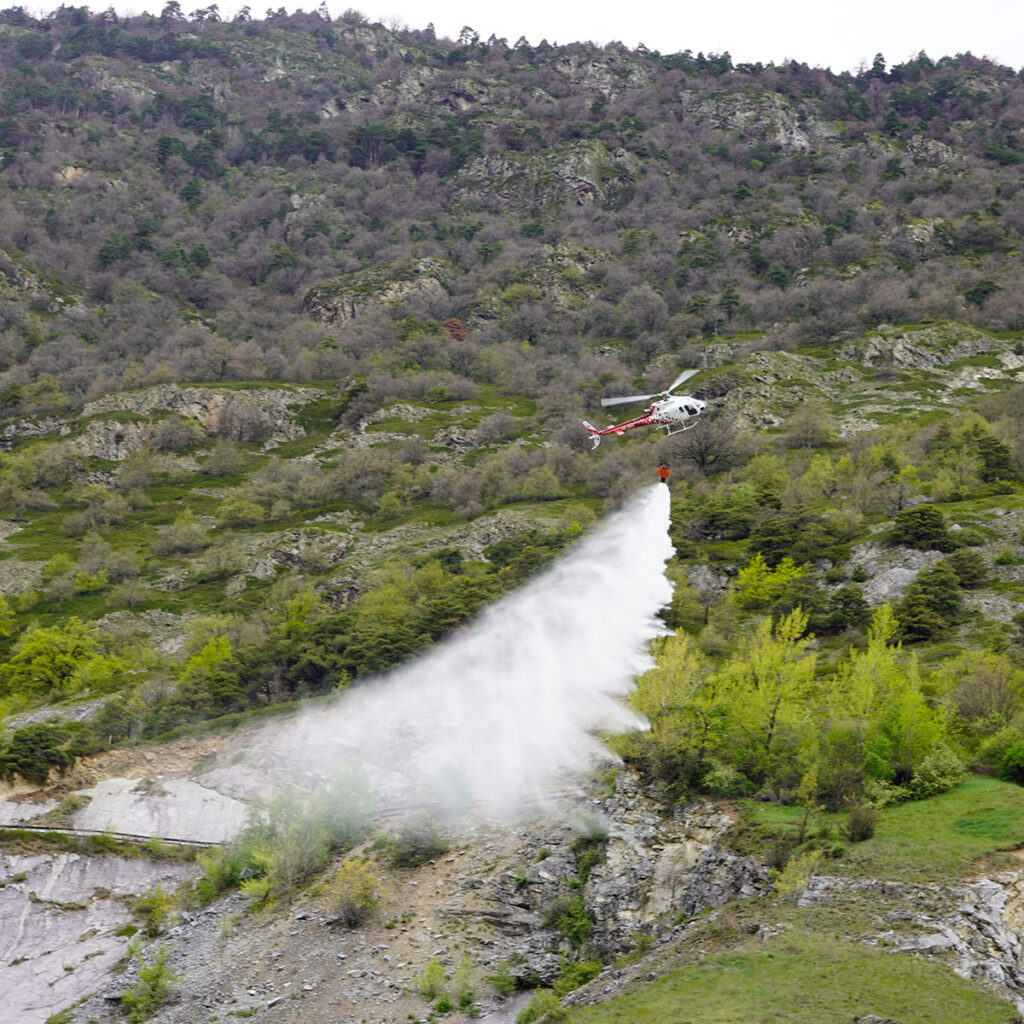

The BRS-24 for radio-controlled opening of the Bambi Bucket

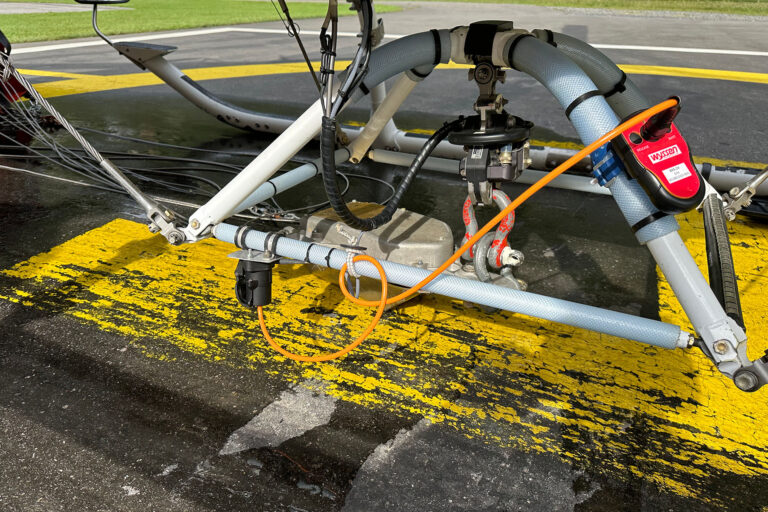

The BRS-24 bucket release system serves as an alternative to a power-guided longline. It was developed in collaboration with Air-Glaciers to the radio-controlled opening of a Bambi Bucket. The control unit can be mounted on the release housing of the Bambi Bucket without any mechanical adjustments.

Advantages

Technical data

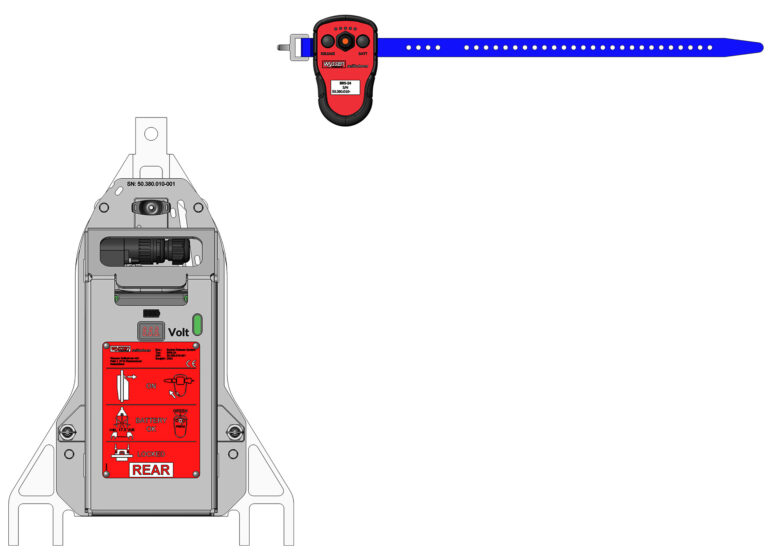

Description Wyssen Bucket Release System BRS-24
Weight: 5kg
Protection class: IP 68: 1.2m (2h)
Dimensions (l x b x h): 347 mm x 195 mm x 72 mm
Radio range 120 mm
Battery receiver housing: 18V DC (“Standard battery” sufficient for 600 rotations of 4 minutes each, at 22°C)
Radio transmitter battery: 4.5V (3x AAA battery)
Temperature range: -20°C - + 55°C
Remarks: suitable for Bambi Bucket BB2024 (other sizes available on request)
Technical approval: The product has been approved by the FOCA (Federal Office of Civil Aviation).
